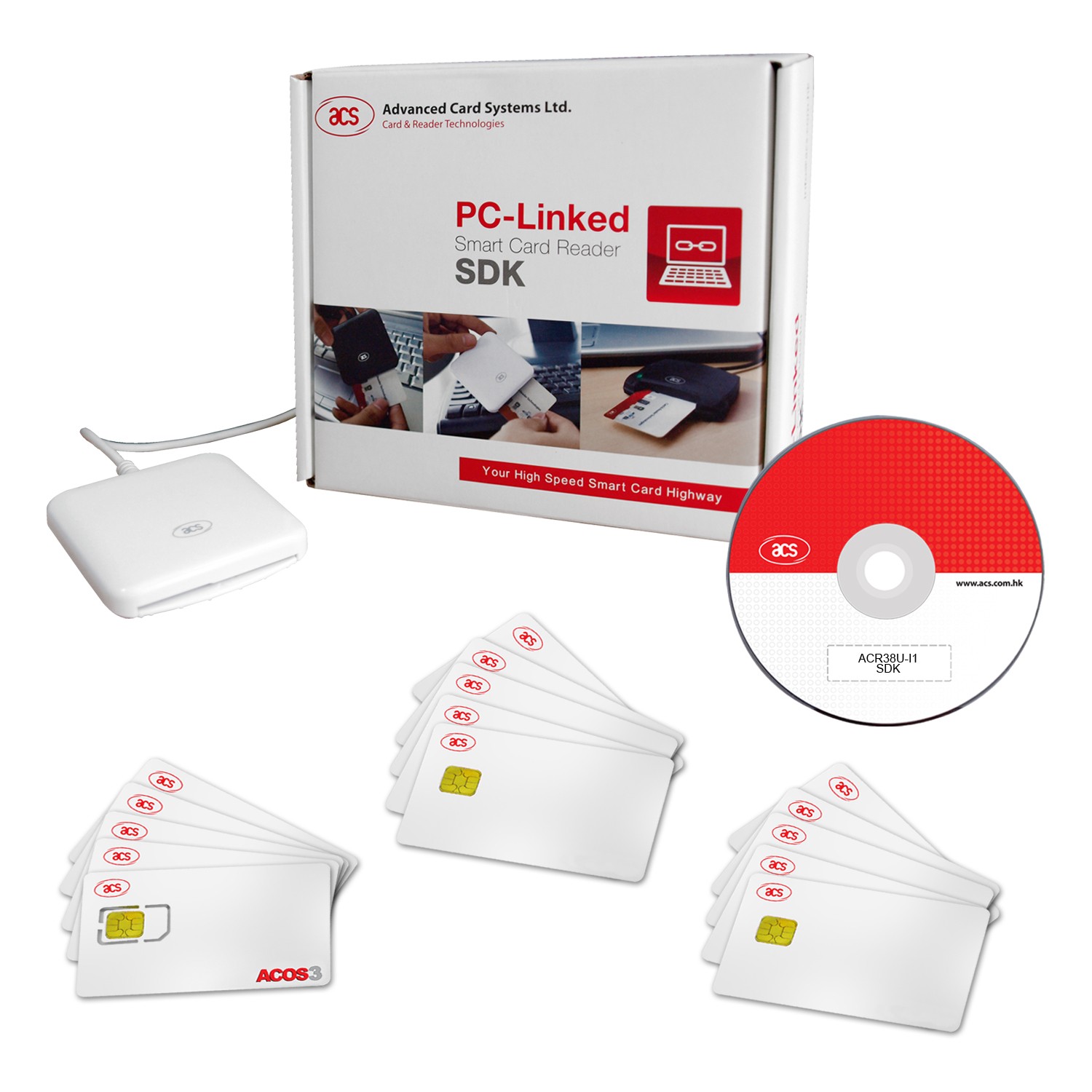

ACR38u contact smart card reader writer adalah alat pembaca dan penulis kartu chip (contact card). Tersedia dalam dua interface yakni USB dan serial yang memungkinkan perangkat untuk dengan mudah diintegrasikan ke dalam lingkungan PC dan system lainnya.
· Supports ISO-7816 Class A, B and C ( 5V, 3V, 1.8V ) cards
· Performs read and write operations on all microprocessor cards with T=0, T=1 protocols
· Supports most of the popular memory card types in the market:
· Cards following the I2C bus protocol (free memory cards) such as:
Atmel: AT24C01 / 02 / 04 / 08 / 16 / 32 / 64 / 128 / 256 / 512 / 1024
SGS-Thomson: ST14C02C, ST14C04C
Gemplus: GFM1K, GFM2K, GFM4K, GFM8K
· Cards with intelligent 256 bytes EEPROM and write protect function: SLE4432, SLE4442, SLE5532, SLE5542
· Cards with intelligent 1K bytes EEPROM and write-protect function: SLE4418, SLE4428, SLE5518, SLE5528
· Cards with '104' type of EEPROM (non-reloadable token counter cards): SLE4406, SLE4436, SLE5536, SLE6636
· Cards with secure memory IC with password and authentication: AT88SC153, AT88SC1608
· Cards with Intelligent 416-Bit EEPROM with internal PIN check: SLE4404
· Cards with Security Logic with Application Zone: AT88SC101, AT88SC102, AT88SC1003
· Supports PPS (Protocol and Parameters Selection)
· Short Circuit Protection
· RoHS Compliant
· Certificate of conformance: EN 60950/IEC 60950, ISO-7816, PC/SC, CE, FCC, VCCI, CCID, Microsoft WHQL, EMV 2000 Level 1
Dimensions Casing : 72.2mm (L) x 69mm (W) x 14.5mm (H)
Bridge Casing : 80.0mm (L) x 71.5mm (W) x 80.0mm (H) Interface USB 2.0 full speed
Supply Voltage Regulated : 5V DC
Supply Current max : 50mA
Operating Temperature : 0-50°C
CLK Frequency : 4 MHz
MTBF : 500,000 hours
Operating System Support : Windows, Mac, Linux
